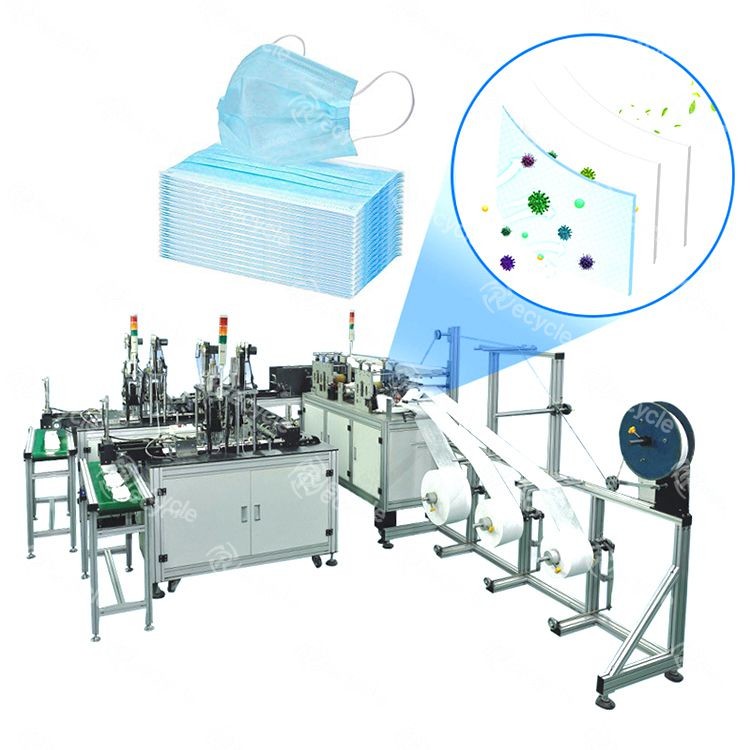

Welding Fully Automatic Medical Face Mask Making Machine
What is automatic face mask making machine
The Disposable Non Woven Mask Machine Full Automatic New Products Surgical used Backed by a team of adroit professionals, we are manufacturing, importing and supplying an extensive quality Non Woven Face Mask Making Machine. A special design for producing 2D masks with ear loop. PLC control system, full automatic from raw material, attaching nose wire, embossing, folding and folding, shape sealing and cutting, then turn over the mask body into loop sealing machine. The final product is a finished mask, wait for a worker to collect and pack.
Feature
1. The automatic medical inner earloop type face mask making machine is automatic from material feeding to mask collection.
2. High automation in ear-loop welding, edge wrapping, counting, and material discharging. The ultrasonic technique does no harm to the characteristic of the material. Easy and safe operation.
3. Artistic and durable, aluminum alloy board, lean and practicality.
4. Faster, Rotary connection device of Independent innovation design.
5. More stable, upgraded machine, MITSUBISHI PLC control system, touch screen, Taiwan photoelectric detection, stable performance, and low failure rate.
Technical Parameters
Import raw materials, automatic feeding, nose line cutting / feeding, hemming welding, folding scene, forming welding, photoelectric detection, automatic slicing, finished product output, receiving tray sorting, full automation
| No. | Name | Parameter |
| 1 | size | 6500 (length) * 3500 (width) * 1950 (height) |
| 2 | Weight | Total equipment weight ≤5000KG Ground load 3500KG / ㎡ |
| 3 | Color | Color Sheet metal warm gray 1C, primary color of aluminum profile |
| 4 | Working power supply | 220VAC ± 5% 50HZ grounding protection Rated power ≤10KW (including welding machine) |
| 5 | Compressed air | 0.4-0.6MP (clean water after dewatering, no oil, filtration, pressure stabilization), use flow rate is about 300L / min |
| 6 | Production efficiency | ≥100PCS/min |
| 7 | The product qualification rate | 99% (except for the original material and human operation) |
| 8 | Main accessories | Cylinder: AirTAC Screw guide rail: HIWIN / TBI PLC: Mitsubishi or Xinjie |
| 9 | Operating environment | General workshop environment is acceptable (no corrosive odor, no dust) |
| Item | Material | Specification | Coil outer diameter | Coil inner diameter |
| 1 | Outer non-woven fabric | 200mm wide roll material | Recommended less than 600mm | greater than 65mm |
| 2 | Inner layer non-woven fabric | 190mm wide roll material | Recommended less than 600mm | greater than 65mm |
| 3 | Melt tape | 175mm wide roll material | Recommended less than 600mm | greater than 65mm |
| 4 | Nose bridge strip | 3.0mm wide roll material | Recommended less than 400mm | greater than 65mm |
| 5 | ear straps | 2.8mm round coil | | |
Product Tags:
|
|

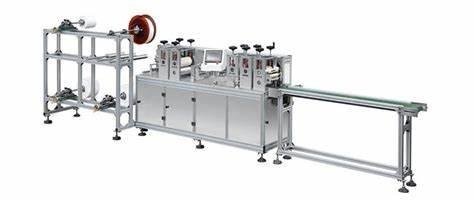

Welding Fully Automatic Medical Face Mask Making Machine Images
|
